Swing system with thermal barrier SMARTIA M11000
Description
The SMARTIA M11000 is a system of aluminum, with thermal barrier, which covers a wide range of needs, regarding the access doors, with top performance.
Benefits
-
Very good value for money
-
High level of safety
-
Energetic efficiency
-
High noise attenuation
-
High degree of functionality
Generic
TYPES OF WINDOWS
Rotary - Tilting
TYPE OF WINDOW
Single - Double - Triple
THERMAL INSULATION
Yes
EXTERIOR FORMS
Rounded, Right, Classic
Technical
CASE DEPTH
62,5 mm
MECHANISM
Euro-groove, Euro-nut
WIDTH OF ALUMINUM VISIBLE IN THE CENTRAL AREA (OF THE INVERSOR)
61 mm
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
MAXIMUM THICKNESS OF THE WINDOW
from 20 mm up to 59 mm
TYPE OF THERMAL INSULATION
Polyamides 24 mm & 20 mm
Performance
SEALING IN WATER
Ε900
PERMEABILITY AT AIR
Class 4
PHONIC INSULATION
47 dB
Characteristics
CASEMENT DEPTH
70 mm
MINIMUM VISUAL ALUMINUM HEIGHT
70 mm
UF
from 2,3 up to 2,9 W/m²K
TYPOLOGIES
For all tilt & turn typologies
CASEMENT WEIGHT
up to 180 Kg
.
The window in a movable leaf with an oscillating swing opening
TYPOLOGIES
All available typologies
Window with a swinging door and fixed overhead light
Window with a swinging leaf and swing light (in scissors)
Window in two movable doors, swing-opening (main door) and swing (secondary door)
The window in a movable leaf with swing-opening and fixed lateral leaf
Pivoting window horizontally
Pivoting window vertically
Window in two movable doors, swing-opening (main door) and swing (secondary door), with fixed side or overhead light
Window in two movable doors, swing-opening (main door) and swing (secondary door), with swing light (in scissors)
Window in two movable doors, swing-opening (main door) and swing (secondary door), with fixed side doors
The window in a movable leaf with swing-opening (hidden sash)
Window in a movable sash with swing-opening and fixed side sill (hidden sash)
Window in a movable leaf, swing-swing opening (hidden sash)
Hinged door inwards/outwards
Door in two swing doors with insulated panel
Door in a movable leaf and fixed side
Door in a movable door, overhead light and fixed side

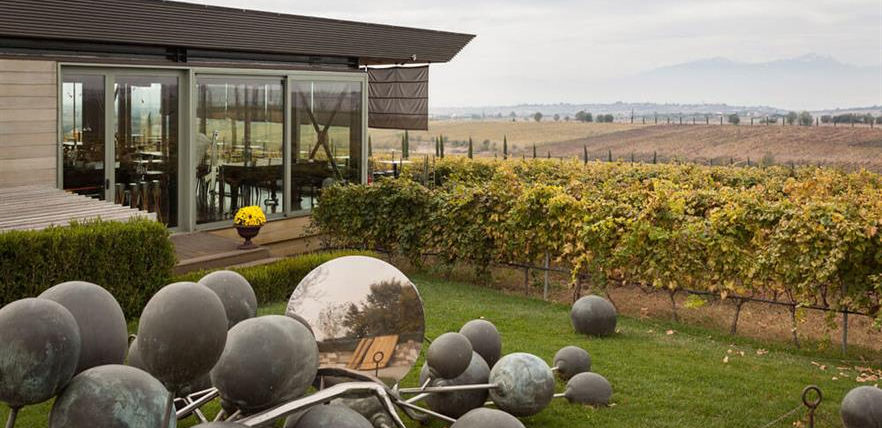

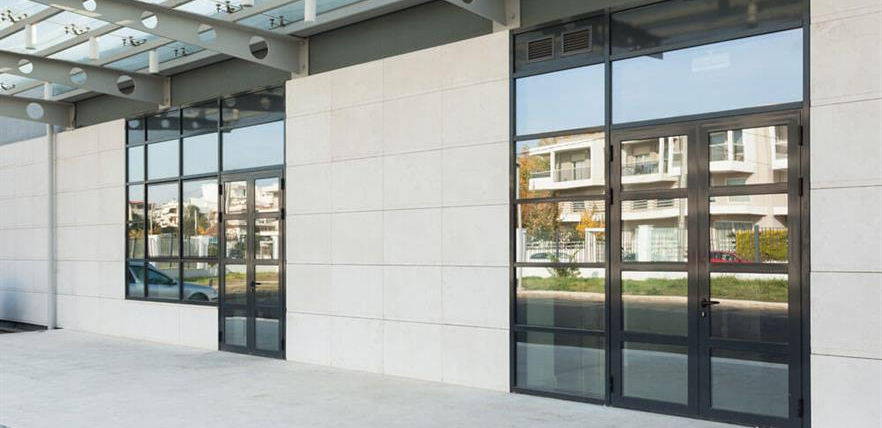

Media Gallery
Sections
